Be attention please:
- Please attention if the package is broken before you received it, please don't open the package and show me the photo, I will contact with the express at once.
- If you have any question when you use the inverter, please feel free contact with me, the professional technical department will help you to deal with the problem.

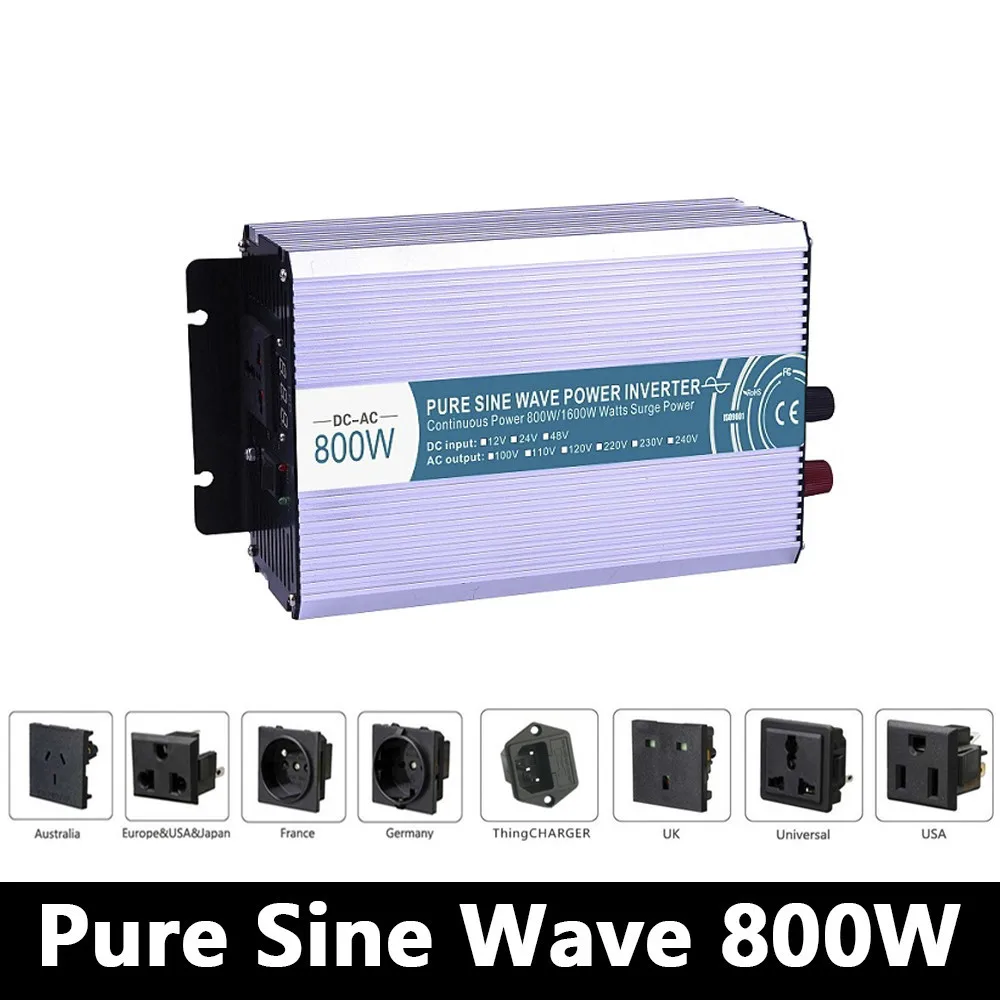

Pure Sine Wave, as good as the grid power
Full Power
Core Technology, German Design
Most Advanced Program in Software
Complete Protection Non Defect Rate,
Better EMC - Electro Magnetic Compatibility,
No Noise for TV or Stereo Sound
SMT- Surface Mounting Technology
All Big Imported Mosfet,Strong Driving Capacity
PCB Thickness :2.00m
LED Display
Compact Design, Less Weight, Full Power,
Single Layer Design, Easy to Repair if any.
Earth Connection for Both Inverter and PCB,
Low No Load Current Draw
Durable quality with 10 years usage,
Alarm and LED Indication Light for error warning. New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.
Sufficient Heat Radiation
More Vent Holes on the plates and the bottom for heat radiation
Popular Metal Black Design
Big Current Connector,
All kinds of socket are available
Strong Wiring Row on AC End,
Best quality ever in the market
Factory Price.
| Output power | 800W | ||||||
| Peak power | 1600W | ||||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | |
| Input voltage range | 9.55-15.5V | 19.8-30.2V | 40.2-60.4V | 9.55-15.5V | 19.8-30.V | 40-60.4V | |
| Output voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% | |||||
| No-loadcurrent less-than | 0.8A | 0.4A | 0.2A | 0.8A | 0.4A | 0.2A | |
| Output frequency | 50HZ±1HZ or 60HZ±1HZ | ||||||
| Output wave | Pure sine wave | ||||||
| Charging current | 10A/20A | 10A | 10A/20A | 10A | |||
| Transfer Time | ≤8MS | ||||||
| Battery priority | Optional/Default Battery priority | ||||||
| USB | 5V 1000MA/2000MA | ||||||
| Max. working efficiency | 93.80% | ||||||
| Operating temperature range | -10°- +50° | ||||||
| Storage temperature | -30°- +70° | ||||||
| Humidity | Max. 90%, non-condensing | ||||||
| Dimensions(W*H*D) | 400x150x72mm | ||||||
| Starting | bipolar soft start | ||||||
| Low voltage alarm | 10V±0.5V | 21V±0.5V | 42V±1V | 10V±0.5V | 21V±0.5V | 42V±1V | |
| Low voltageshut down | 9.5±0.5V | 20V±0.5V | 40V±1V | 9.5±0.5V | 20V±0.5V | 40V±1V | |
| Low voltage recovery | 13±0.5V | 24V±0.5V | 48V±1V | 13±0.5V | 24V±0.5V | 48V±1V | |
| Over voltage shut down | 15.5±0.5V | 31V±0.5V | 61V±1V | 15.5±0.5V | 31V±0.5V | 61V±1V | |
| Over voltage recovery | 14.8±0.5V | 29V±0.5V | 59V±1V | 14.8±0.5V | 29V±0.5V | 59V±1V | |
| LED Lights | Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit) | ||||||
| Protection | Battery over under / over voltage, overload, temperature, AC short circuit protection (positive and negative polarity protection) | ||||||
| Fuse | DC short circuit protection | ||||||
| Display | LED high-definition digital display | ||||||
| Circuit Topology | Frequency link | ||||||
| Cooling way | Intelligent cooling, built-in cooling block | ||||||
9 kinds of protections:
1.Short circuit production.
When the load is short circuit, the inverter will stop working.
2. High temperature production.
When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.
3. High voltage protections.
The battery voltage is above the rated voltage of the inverter, the inverter will stop working.
4. Low voltage protections
The battery voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.
5. Surge protection.
It can avoid the DC high voltage surging attack upon the electronic components inside.
6. Overload protection
When the appliances power is higher than the inverters power, the inverter will stop working for self protection.
7. Over current Protection
When the appliances current is bigger than the inverter™ current, the protection components on the board will be cut automatically for self protection.
8.Fuse protection.
When the appliances resistance is bigger than inverters, the fuses on the socket will be automatically cut off for self protection.
9. Reverse protection
It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.
The resistive load applications and the inductive load applications
For resistive load applications:
If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.
For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.
For inductive load applications:
If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.
Shipment
Payment
We accept Alipay, T/T, Western Union and Visa payment. Except the Alipay, the transform charge is to customer's side. Please pay the order within 3 days, and we will arrange the shipment 1-2 days.
Feedback
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and service. If you have any problems, please feel free to contact us firstly before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
Характеристики
- Бренд
- makerele
- Тип
- Преобразователи DC/AC
- Номер модели
- P800W
- Выходная мощность
- 500-1000 Вт
- Тип выхода
- Одна
- Габаритные размеры
- 275*150*80mm
- Вес, кг
- 2.2kg
- Частота на выходе
- 50/60HZ±0.5
- Выходной ток
- 4A
- Индивидуальное изготовление
- Да
- Input Voltage
- DC12V/24V/48V
- Output Voltage
- AC110/220V
- output Power
- 800W
- Peak Power
- 1600W(1s)
- USB Output voltage
- 5V 500mA
- Output Wave form
- Pure Sine Wave
- Cooling
- Fan
- High Battery Shutdown
- 30+-0.5V
